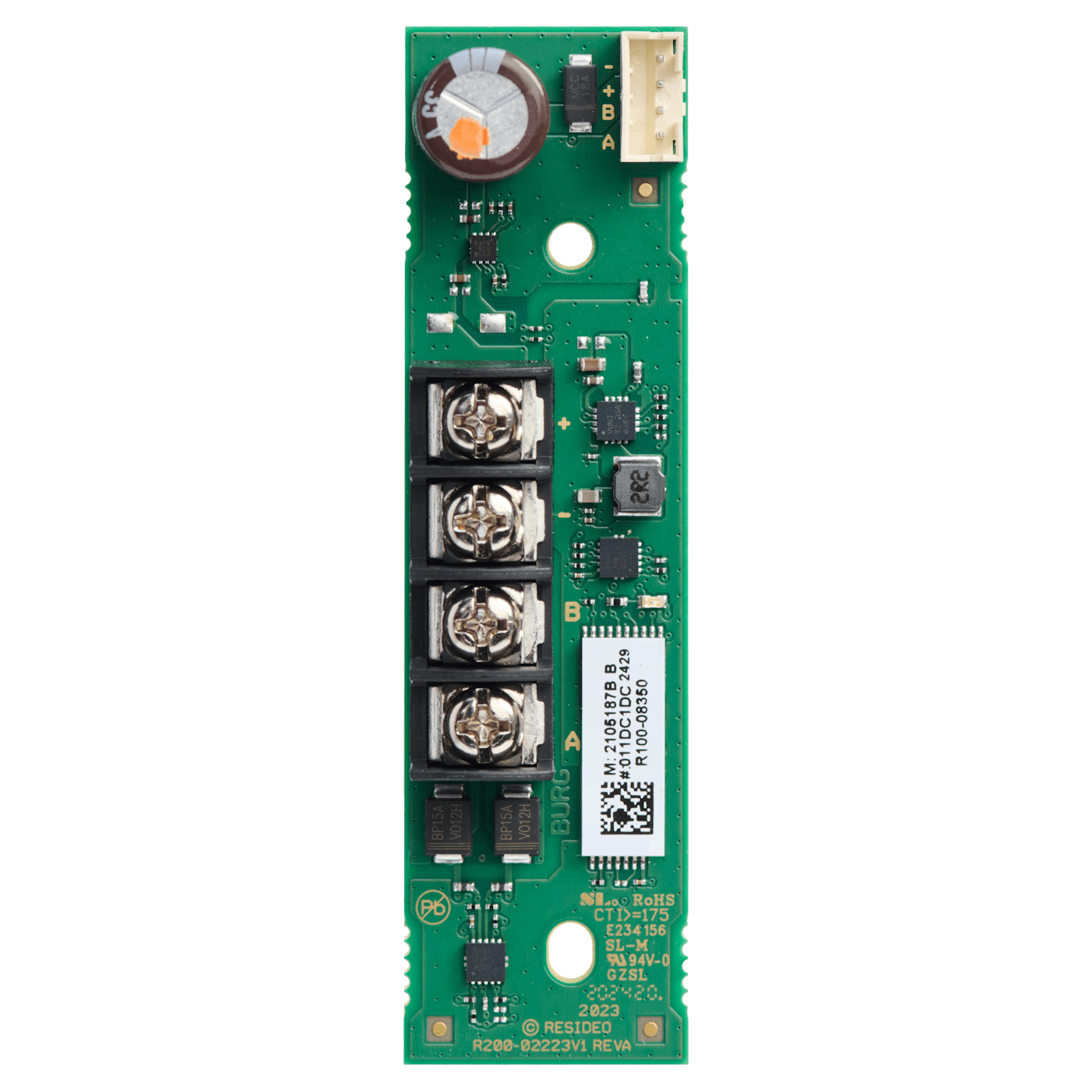

VISTAHISO - Resideo First Alert VISTA H Bus Isolator Module

VISTAHISO - Resideo First Alert VISTA H Bus Isolator Module
VISTAHISO - Resideo First Alert VISTA H Bus Isolator Module
Item# VISTAHISO
List Price: $59.65
Your Price: $39.77
Availability: In Stock
QTY:
ShippingFast shipping
In stock items are shipped ground within approximately 3-5 business days from which the date the order was placed.

Read the full shipping policy
Returns30-day return window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details, and we don't sell your information to others.

Read the full order processing policy

First Alert VISTAHISO Product Description:


The First Alert VISTAHISO is a VISTA H bus isolator module that separates fire keypads and other devices from burglary devices on the iBus data circuit. Isolation between fire and burglary devices is required in a Residential Fire Listed system.

The module is designed to isolate data wire and power (+/-) shorts or grounds that occur on the burglary side of the iBus circuit from interfering with communications to Fire devices connected to the iBus.

Please Note: Only one (1) VISTAHISO can be installed. This module must be installed in accordance with the National Fire alarm and Signal Code ANSI/NFPA 72, Chapter 29.

First Alert VISTAHISO Product Specifications:


Physical:

  • Dimensions - 0.866" x 5.15" in.

Environmental:

  • Operating Temperature - 32°F to 122°F (0°C to 50°C)
  • Operating Humidity - 0 to 95% Relative Humidity

Electrical:

  • Input Voltage - 12 VDC
  • Input Current - 10 mA
