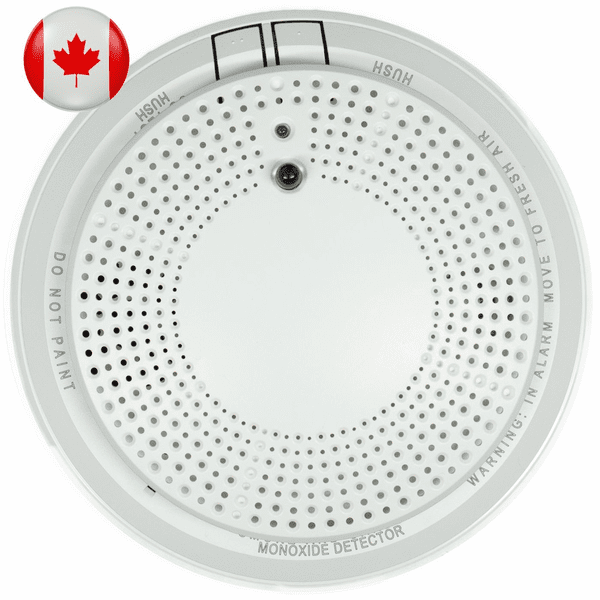

SiXCOMBO-CN - Resideo Honeywell Home Wireless Encrypted Smoke, Heat and Carbon Monoxide Detector (for Lyric Controller Canada)
Please Note: The Honeywell SiXCOMBO-CN wireless combo smoke/carbon monoxide detector has been discontinued without replacement.
Honeywell SiXCOMBO-CN Product Description:
The Honeywell SiXCOMBO-CN is a wireless smoke, heat and carbon monoxide (CO) detector that is intended for use with the ProSeries or Lyric Controller that supports SiX-Series wireless devices. In a matter of minutes, the SiXCOMBO-CN can be programmed and enrolled into the Lyric Controller Canada (LCP500-LC) or ProSeries Canada (PROA7PLUSCN) all-in-one wireless touchscreen control panel. Due to its SiX-Series Sensor Lock feature, once enrolled, the SiXCOMBO-CN detector cannot be used with another panel until it is removed from the current controller. The SiXCOMBO-CN provides early warning against smoke by using its electrochemical sensing technology to measure smoke or carbon monoxide levels in the air. The SiXCOMBO-CN utilizes SiX™ wireless technology including the one-go/all-go feature where if one unit detects smoke/heat/CO all units will go into alarm at the same time.
Product Features:
- Multi-Criteria Sensing: uses four sensing elements to react faster while minimizing false alarms
- Photoelectric smoke sensor detects airborne smoke particles
- Carbon Monoxide (CO) sensor detects smoldering fires
- Infrared (IR) sensor measures ambient light and flame signatures, such as flame flicker
- Thermal detection monitors for dangerous rise in temperature
- CO Detector End-of-Life reporting (detector needs replacing)
- Smoke detector maintenance reporting (detector needs cleaning or replacing)
- Low Battery Detection
- One Go / All Go: all smoke/CO detectors in the system programmed as one-go-all-go will sound on alarm
- Voice announcements (English only)
Honeywell SiXCOMBO-CN Product Documents:
• Honeywell Home Canada SiXCOMBO-CN Combo Smoke/Heat/CO Detector - Data Sheet
• Honeywell Home Canada SiXCOMBO-CN Combo Smoke/Heat/CO Detector - Installation and Setup Guide
• Honeywell Home Canada SiXCOMBO-CN Combo Smoke/Heat/CO Detector - Quick Installation Guide
• Honeywell Home SiX-Series Devices - Enrolling Sensors
Honeywell SiXCOMBO-CN Product Specifications:
- Dimensions: 2.03" Height , 5.95" Diameter with mounting base
- Case Color: White
- Weight: 13.92 oz. (383 g) without battery
- Operating Ambient Temperature Range: 32°F to 100°F (0°C to 38°C)
- Storage Temperature Range: -10°F to 70°F (14°C to 158°C)
- Operating Humidty Range: 20% to 95% relative humidity, non-condensing
- Mounting: Back boxes: 3.5" and 4" octagonal; single-gang; 4" square; 2 x 4", 3.5? and 4" round ceiling. Direct mount to wall or ceiling
- Voltage: 3 volts DC
- Battery Type: CR-123 lithium
- Battery Manufacturer: Duracell
- Sensitivity: UL limits .9 to 3.5&per;/ft ULC limits .9 to 3.08 &per;/ft
- Thermal Sensor: 135°F Fixed (57°C)
- Audible Signal: 85 dB
- Country of Use: Canada
- Three Unique Zones: Smoke/Heat, CO and Low Temperature alert
- Agency Listings: US model is fully compliant with ANSI/UL 268 and 2075 standards, FCC certified, ETL listed
Honeywell SiXCOMBO-CN Product LED Indicators:
Multi-Color Top LED:
- Green: Supervisory indication; blinks during power on, reset, and during normal operation
- Amber: Signal maintenance and trouble events
- Red: Alarm condition (either Smoke or CO)
Multi-Color Side Window LED:
- Red: smoke alarm
- Blue: CO alarm
