PROSiXSIRENO - Resideo Honeywell Home Wireless Encrypted Outdoor Alarm Siren (for ProSeries Control Panel)
ProSeries PROSiXSIRENO Product Description:

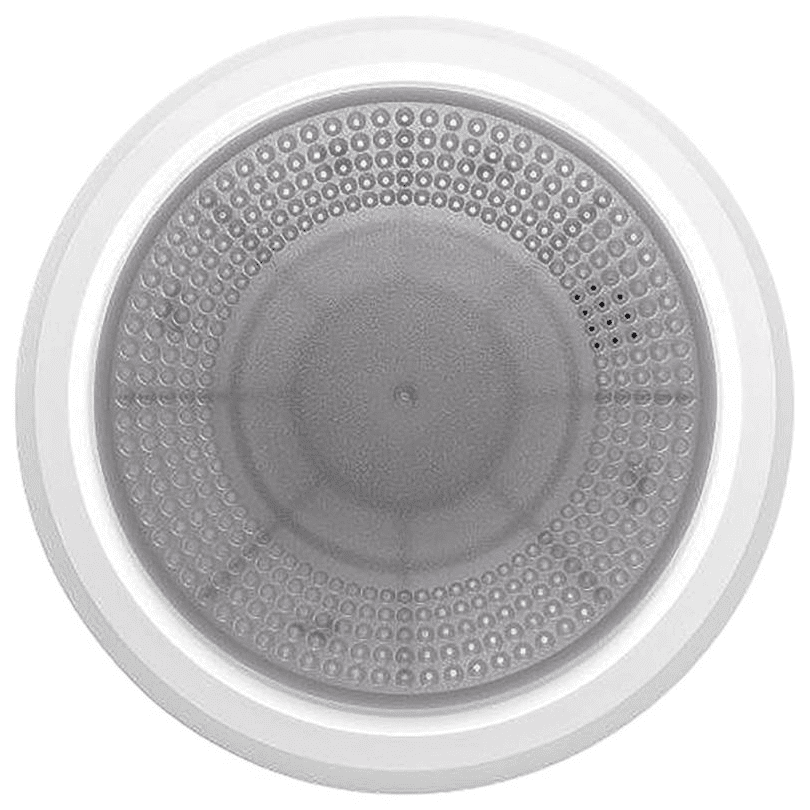

The Resideo Honeywell Home PROSiXSIRENO is a wireless outdoor siren/strobe that is intended for use with control panels that support PROSiX-Series devices. The PROSiXSIRENO motion detector is compatible with the ProSeries PROA7, ProSeries PROA7C, ProSeries Canada PROA7CN, ProSeries PROA7PLUS, ProSeries PROA7PLUSC or ProSeries Canada PROA7PLUSCN all-in-one wireless touchscreen control panels. With a combination of an audible 85dB siren and visible LED strobe light, the PROSiXSIRENO siren is used as a part of a integrated outdoor security system to alert nearby individuals of an impending danger.
To enroll the PROSiXSIRENO, begin by inserting the four 1.5AA Lithium batteries that come included to activate the device. The Green LED flashes rapidly during enrollment for up to about 20 seconds. Enrollment is confirmed when the Green LED is ON for 3 seconds. The siren did not enroll in the system if either of the following; the white LED flashes (the system chirps and the device powers down), the Green LED flashes rapidly when the device is removed from the mounting bracket (the tamper switch is triggered). To restart the enrollment process, ensure the system is in programming mode and activate the tamper switch. Once the PROSiXSIRENO is enrolled in a system, it cannot be used with another controller until it is removed from the current controller.
After enrolling, verify adequate signal strength by conducting a sensor test with the device in its intended mounting location. Adjust the device location and orientation as necessary. The PROSiXSIRENO is easy to install outdoors and can be mounted on the wall or ceiling. The rear tamper breakout must be mounted to a stud, solid wood, or with a robust wall anchor. The device can be enrolled and programmed either before or after installation.
The PROSiXSIRENO should be tested immediately after installation and weekly. Activate Test Mode remotely from the Controller so we can test the sounder and LED. The sounder should sound a Burglary warble tone for 3 seconds. The LED light should flash a White LED strobe for 15 seconds. The PROSiXSIRENO device is meant to be used only indoors. The PROSiXSIRENO is meant for outdoor use. For added interior protection at your home or business, you may consider adding a few PROSiXSIREN indoor sirens to do the job.
Product Features:
- 128-bit AES Encryption (PROSiX-Series)
- Transmission range up to 300 feet
- Cover and Wall Tamper protected
- LED Strobe Light
- Should be Used Outdoors
- Audible 85dB Siren
ProSeries PROSiXSIRENO Product Documents:
• ProSeries PROSiXSIRENO Wireless Outdoor Alarm Siren - Data Sheet
• ProSeries PROSiXSIRENO Wireless Outdoor Alarm Siren - Installation and Setup Guide
• ProSeries PROSiXSIRENO Wireless Outdoor Alarm Siren - Quick Installation Guide
ProSeries PROSiXSIRENO Product Specifications:
- Dimensions (Diameter x Depth): 6.1" x 1.8" (15.5cm x 4.4cm)
- Mounting Hardware: Included (can be mounted on the wall or ceiling)
- Sound Pattern: 360°
- Transmission Range: 300 ft (92 meters)*
- RF Frequency: 2.4 GHz
- Power Requirements: 3.3 volts DC, 1.5V, AA Lithium, Non-Rechargeable; Energizer E2
- Input Voltage: 3.3VDC
- Current: 339 mA, Typical
- Siren Output Level: 85 dB at 10 feet
- Encryption: 128-bit AES
- LED Indicators: Yes
- Tamper Protected: Yes (Cover and Wall Tamper)
- Operating Temperature: -40° to 122°F (-40° to 60°C)
- Relative Humidity: 95% (Agency Compliance 93% max), non-condensing
- Agency Approvals: FCC/IC, cETLus Listed, conforms to UL 985/UL 1023, certified to ULC-S545 and ULC/ORD-C1023, RoHS
- Authorized Countries: US, Canada, Latin America
* Range can vary depending on building construction, wireless interference, and other factors.
