PG9HRDW8 - DSC/Qolsys IQ Hardwire PowerG Wired-to-Wireless Converter Module with (4) HSM2108 Expansion Slots
DSC/Qolsys PG9HRDW8 Product Description:
The DSC/Qolsys PG9HRDW8 IQ Hardwire PowerG is a wired to wireless converter module, with four (4) HSM2108 expansion slots, that converts existing hardwired zones to PowerG wireless zones. With the PG9HRDW8 IQ Hardwire PowerG you can connect up to 32 hardwired zones wirelessly to a DSC or Qolsys PowerG compatible security system. It's easy to DIY install and is the perfect solution for existing systems or new construction.
With the PG9HRDW8 expansion module, you can effortlessly integrate your traditional wired sensors and devices into a modern wireless network, eliminating the need for extensive rewiring or replacement of existing equipment. This not only saves time and resources but also maximizes the value of your current security investment. The PowerG Wired to Wireless Converter is engineered to provide a quick, easy, and secure method to enhance and modernize outdated security systems. By leveraging industry-leading PowerG technology, this module ensures robust and reliable communication between your security devices, offering peace of mind with its enhanced security features.
Please note, you need to upgrade the Qolsys IQ Panel 2 Plus firmware to 2.5.3 or higher before enrolling this module. The bell output supports continuous burglary alarms, fire alarms and CO alarms. The AUX1 auxiliary power is used only for burglary alarm initiating devices. And, the AUX2 auxiliary power is used only for fire alarm initiating devices such as smoke, heat and CO detectors.
Product Features:
- 8 wired inputs enable to connect to 8 hardwired zones
- Industry-leading PowerG wireless technology?
- Connect siren, strobe and 4 PGMs for a full range of applications?
- Enhanced security is enabled by the double end-of-line programming, tamper protection (including back tamper) and the integrated power supply supervision?
- 2 Auxiliary independent power circuits?
- 24-hour back up battery is safely stored inside the plastic cabinet?
- Use your favorite hardwired device from any hardwired portfolio and incorporate it into the PowerG ecosystem?
- Use up to 2 modules per panel
- Contains expansion slots for 4 HSM2108
Please Note: The Qolsys IQ Panel 2 Plus firmware must be upgraded to 2.5.3 or higher before enrolling this module. The bell output supports continuous burglary alarms, fire alarms and CO alarms. The AUX1 auxiliary power is used only for burglary alarm initiating devices. And, the AUX2 auxiliary power is used only for fire alarm initiating devices such as smoke, heat and CO detectors.
DSC/Qolsys PG9HRDW8 Product Specifications:
- Dimensions: 11.8" x 15.55" x 3.35" (300mm x 395mm x 85mm)
- Weight: 2.85 kg (6.28 lb) including the battery
- Input Voltage: 18.0VDC Plug-In Transformer
- Backup Battery: 12VDC 7AH Max (not included)
- Input Zones: 8
- Siren Output (Supervised): 12V @ 700mA
- Freqency Band: 912.75 MHz to 919.106 MHz
- Maximum Power: 0.0447 W
- Encryption: AES 128-bit encryption
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Operating Humidity: 5 to 93% RH non-condensing (UL and ULC ony verified operation for a maximum of 93% RH)
- Input for UL and ULC applications: 120 VAC, 60 Hz, 1.2A
- Input for EN50131 applications: 240 VAC (+10%, -15%), 50 Hz, 1.2A
- Output: 18 VDC, 2.22 A
- Battery Type: Sealed, rechargeable lead acid
- Battery charging voltage and current: 13.7 VDC, 360 mA
- Low Battery Threshold: 11.4 VDC
- Battery Cutoff Level: 9.6 VDC ± 2%
- PCB assembly current consumption: 70 mA
- PGM 1, 3, and 4 voltage and current: 11.3 VDC to 12.5 VDC, 50 mA
- PGM 2 voltage and current: 11.3 VDC to 12.5 VDC, 300 mA
DSC/Qolsys PG9HRDW8 Product Documents:
• Installation Guide - DSC/Qolsys PG9HRDW8 IQ Hardwire PowerG Wired-to-Wireless Converter
• Quick Start Guide - DSC/Qolsys PG9HRDW8 IQ Hardwire PowerG Wired-to-Wireless Converter
DSC/Qolsys PG9HRDW8 Product Includes:

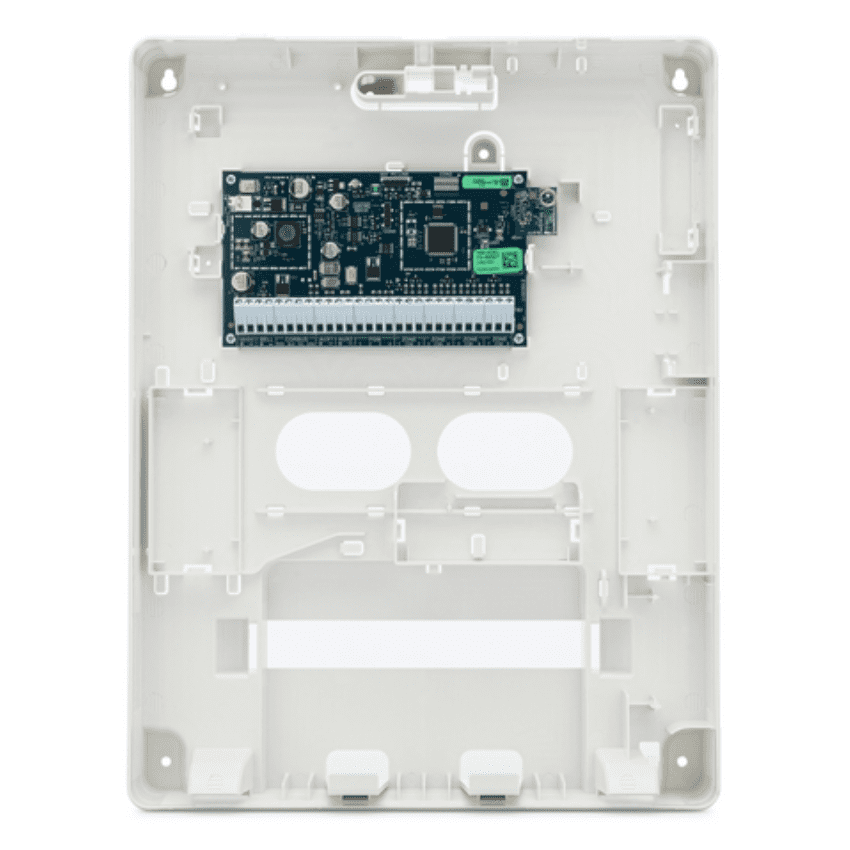

- The plastic enclosure containing the IQ Hardwire PowerG Wired to Wireless Converter
- The transformer
- The hardwire pack
DSC/Qolsys PG9HRDW8 Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
