PG9974P - DSC Wireless Encrypted Mirror Optic Motion Detector (for PowerG Control Panels)

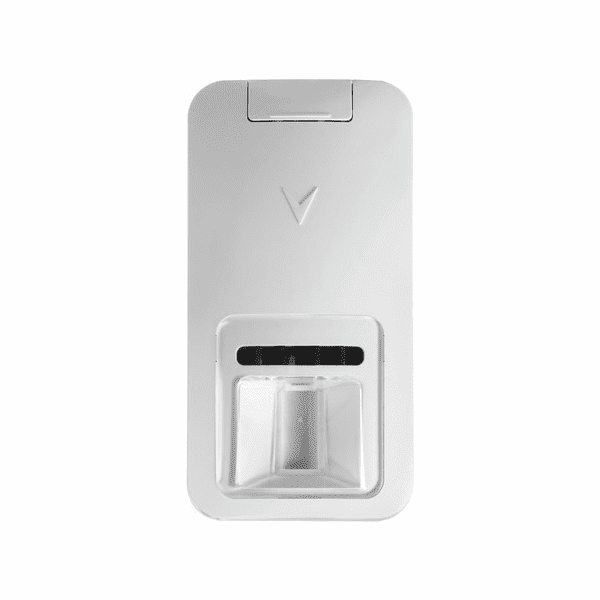

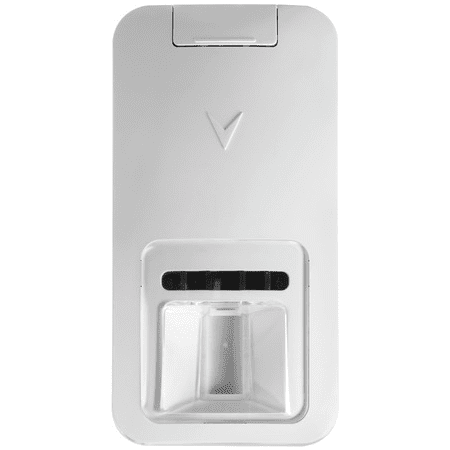

DSC PG9974P Product Description:
The DSC PG9974P is a wireless PowerG Mirror Optic PIR Motion detector is a vital component of a PowerG compatible security system. Upon the detection of motion, the PG9974P communicates an alert to the security system.
With built-in pet immunity the PG9974P is able to distinguish pets weighing up to 40 kg (90 lb) to reduce false alarms. Using advanced technologies, the PG9974P provides reliability, robustness to interference, prolonged battery life, extended range and easy installation. that is designed for PowerG compatible security systems. The PG8844P has a PIR motion detector and microwave sensors that are able to distinguish human beings and pets using True Motion Recognition™ which reduces the number of false alarms.
The PG9974P uses a combination of elliptical parabolic mirror optics. This innovative technology creates an exceptionally efficient mirror with extremely high optical gain, delivering longer range and providing excellent detection sensitivity. The PG9974P also applies a digital temperature compensation that allows the detector to continuously adjust its sensitivity according to the location temperature. In this way, the PG9974P is able to detect an intruder even when the ambient temperature is close to that one of the human body.
The PG9974P uses an obsidian black mirror technology. A unique, nickel-based, obsidian-like, reflective surface acts as a selective optical filter of infrared energy. In this way, the PG9974P can virtually eliminate white light interference and increase detection sensitivity.
The PG9974P is equipped with a visible link quality LED indicator that lets the installer choose the optimal location for installation, eliminating the effort of going back and forth to the keypad. Additionally, device configuration is quick and easy with no hardware switches or need to re-open the device. All device configuration settings are handled via the system keypad.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- Market-leading mirror optics offer exceptionally high detection sensitivity and immunity to false alarms
- Vandal-resistant design through patented V-Slot technology
- 15 m (50 ft) 90° coverage
- Long-life lithium batteries included
- Pet immunity up to 40 kg (90 lb)
- Low battery indication
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PG9974P Product Specifications:
- Dimensions (H x W x D): 4-1/2" x 2-5/16" x 1-15/16" in (115 x 60 x 48 mm)
- Weight (including battery): 90g (3 oz)
- Color: White
- Frequency Band (MHz): 433MHz
- Communication Protocol: PowerG
- Detector Type: Dual element low-noise pyroelectric sensor
- Number of Beam Elements: 18 x 3 = 54 far parabolic mirror segments
- Maximum Coverage: 15 m (49 ft) / 90°25 m (82 ft) x 2.5 m
- Pet Immunity: Up to 38 kg (85 lb)
- Supervision: Signaling at 4-min. intervals
- Tamper Alert: Reported when a tamper event occurs and in any subsequent message, until the tamper switch is restored
- Battery Type: 3V Lithium CR-123A Battery or equivalent
Note: For UL installations use Gold Peak (GP) only. - Nominal Battery Capacity: 1450 mA/h (2400 mA/h for optional CR17450)
- Low Battery Threshold: 2.45V
- Battery Life (for typical use): 7 years
- True Motion Event Verification: 2 remote selections - 1 (OFF) or 2 (ON) motion events
- Alarm Period: 2 seconds
- Mounting Height: 1.8 to 3.0 m (6 to 10 ft)
- Installation Options: Surface or corner
- PGBRACKET-1: Surface mounted swivel bracket, adjustable 30° down and 45° right
- PGBRACKET-2 and PGBRACKET-1: with a corner adapter
- PGBRACKET-3 and PGBRACKET-1: with a ceiling adapter
- Operating Temperature: 14°F to 131°F (-10°C to 55°C) and UL/ULC only verified 0°C to 49°C
- Relative Humidity: up to 93% max. non condensing
- RFI Protection: > 20 V/m up to 2000 MHz, excluding inband frequencies
- Compatible Receivers: 433MHz Band: HSM2HOST4; HS2LCDRF(P)4;HS2ICNRF(P)4; PG4920
868MHz Band: HSM2HOST8; HS2LCDRF(P)8; HS2ICNRF(P)8; PG8920
912-919MHz Band: HSM2HOST9; HS2LCDRF(P)9; HS2ICNRF(P)9; PG9920 - Approvals: FCC/IC, UL/ULC
DSC PG9974P Product Documents:
• DSC PG9974P Wireless PowerG Mirror Optic Motion Detector - Datasheet
• DSC PG9974P Wireless PowerG Mirror Optic Motion Detector - Installation and Operation Guide
DSC PG9974P LED Indicators:
Event LED Indications:
- Red LED Blinks: Stabilization (warm-up 60 sec)
- Red LED on 0.2 second: Tamper open/close
- Red on 2 sec: Intruder alarm
- Yellow LED on: AM detection - Testing Mode
- Yellow LED blinks slowly (0.2 sec. ON, 30 sec. OFF): AM detection - Normal Mode
- Yellow and red LED blink simultaneously (0.2 sec. ON both, 0.2 sec. OFF): Self-test failure - Diagnostic Mode
- Yellow and red LED blink simultaneously slowly (0.2 sec. ON both, 30 sec. OFF): Self-test failure - Normal Mode
LED Response (signal strength):
- Green LED blinks: STRONG
- Orange LED blinks: GOOD
- Red LED blinks: POOR
- No blinks: No Communication
Important: Only GOOD and STRONG signal strengths are acceptable. If you receive a POOR signal from the device, relocate it and re-test until a GOOD or STRONG signal is received.
DSC PG9974P Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
