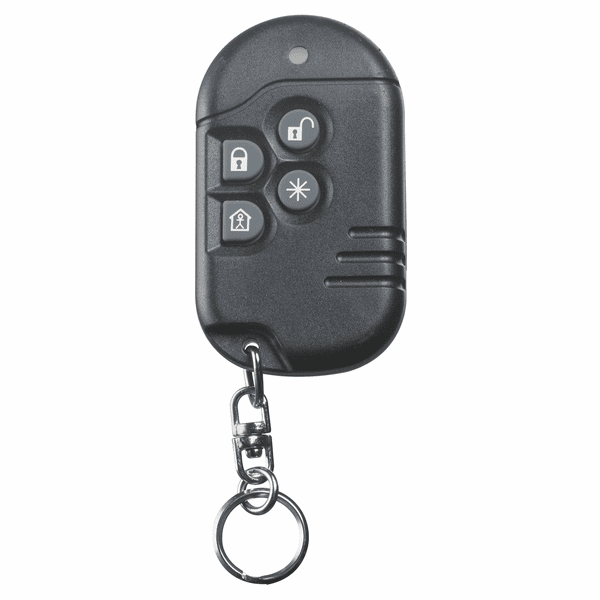

PG9939 - DSC PowerG Wireless Encrypted 4-Button Remote Alarm Keyfob (for PowerG Control Panels)
DSC PG9939 Product Description:
The DSC PG9939 is a programmable PowerG encrypted 4-button remote keyfob that combines easy management of your compatible security system with the added confidence of personal portable protection. The modern, compact wireless key lets users easily arm/disarm the system as they approach the building or call for help in the event of a danger when in close proximity to or inside the building.
The PG9939 can be configured to transmit up to five separate commands to the alarm system. Four of the commands are transmitted by pressing one of the buttons separately, and the fifth is by pressing button 1 and 2 simultaneously. If the system successfully acknowledges the command the green LED lights and the acknowledgment tone sounds. If the system cannot perform the command the red LED lights and the error tone sounds. Each wireless key is supplied with a small key ring.
The PG9949 keyfob provides both visual and audible verification of the successful execution of any requested commands. The dual confirmation that the message has been executed by the security system offers "peace of mind" to users. It is equipped with a full two-second activation delay on its panic function to help reduce false alarms, thus minimizing costly false dispatches caused by accidental activations. Additionally, the other keys incorporate a one-second delay to minimize false activations.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- 4 programmable function keys
- Integrated LED to indicate signal transmission and acknowledgement
- Full 3-seconds delay on panic function to reduce false alarms
- Visual and audible indicator to acknowledge requested action
- Prolonged battery life (8 years with typical use)
- Certified with ULC Wireless Commercial Burglary Listing under ULC-S304-16 Standard - an industry first in Canada!
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PG9939 Product Specifications:
- Dimensions (L x W x D): 2-3/8 x 1-3/8 x 1/2 in (60mm x 34.5mm x 12.5 mm)
- Weight (including battery): 25g (0.9 oz)
- Frequency Band: CE Listed PG4929: 433-434MHz; CE/EN listed PG8929: 868-869MHz; FCC/IC/UL/ULC listed PG9929: 912-919MHz
- Communication Protocol: PowerG
- Battery Life: 8 years (typical use)
- Battery Type: 3V CR2032 Lithium Battery (VARTA or Energizer for UL/ULC listed installation)
- Low Battery Threshold: 2.2 V
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Humidity: Up to max. 93% RH, non-condensing
- Maximum Devices in any combination: 32 (PG9929, PG9938, PG9939 and PG9949)
- Compatible Receivers: 433 MHz Band: HSM2HOST4; HS2LCDRF(P)4; HS2IC-NRF(P)4; PG4920
868MHz Band: HSM2HOST8; HS2LCDRF(P)8; HS2IC-NRF(P)8; PG8920
912-919MHz Band: HSM2HOST9; HS2LCDRF(P)9; HS2IC-NRF(P)9; PG9920 - Color: Black
- Approvals: FCC/IC, UL/ULC
DSC PG9939 Product Documents:
• DSC PG9949 Remote 4-Button Keyfob - Datasheet
• DSC PG9939 Remote 4-Button Keyfob - Installation/Operation Guide
DSC PG9939 Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
