PG9936 - DSC Wireless Encrypted Smoke/Heat Detector (for PowerG Control Panels)
DSC PG9936 Product Description:

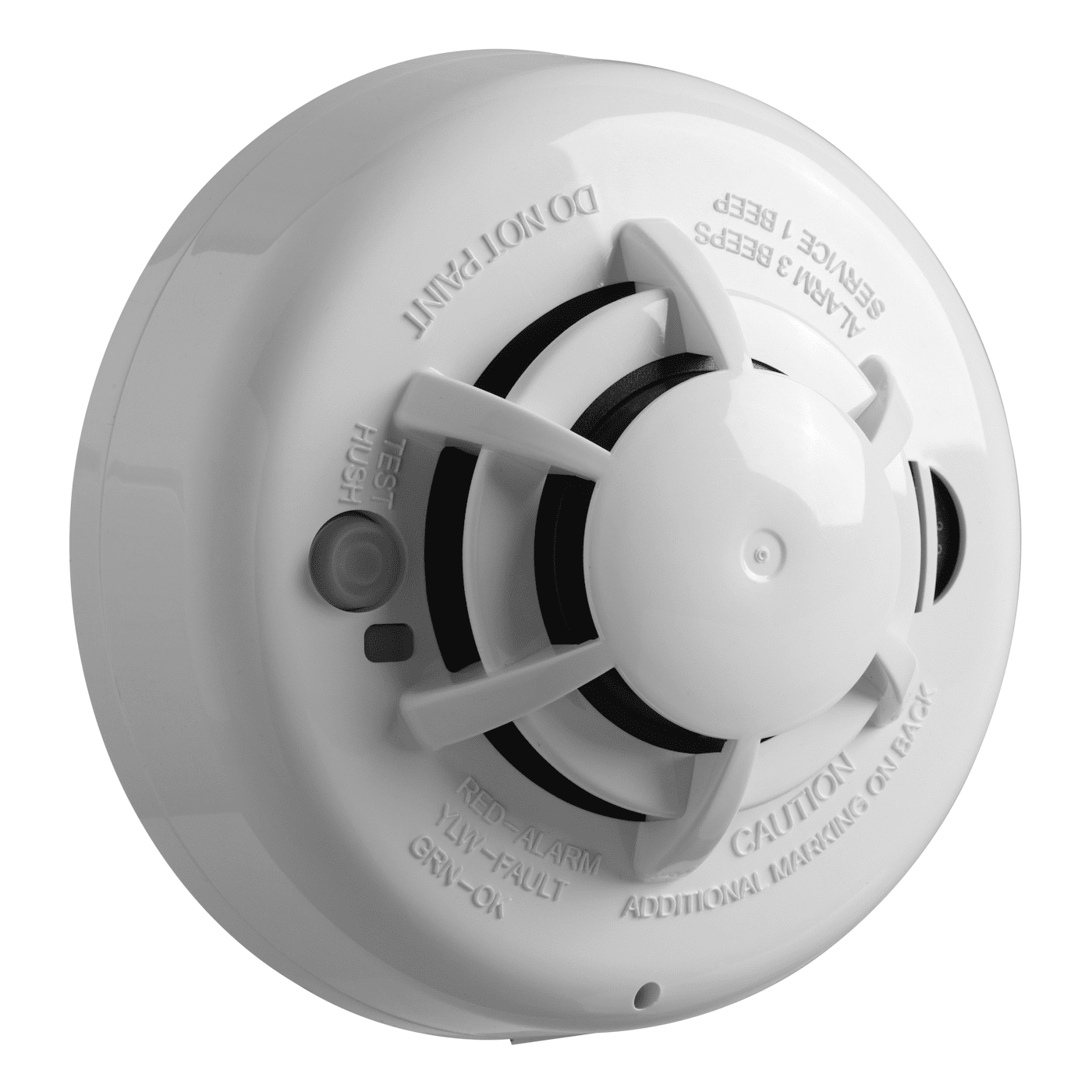

The DSC PG9936 is a wireless PowerG photoelectric smoke and heat detector with a fixed temperature and rate of rise heat detector. The PG9936 smoke/heat detector provides early warning of developing fire by sounding an alarm with its internal piezoelectric alarm siren, and by transmitting an alarm signal to the security system.
The PG9936 alerts occupants of the room by activating the built-in 85dB alarm buzzer and flashing LED light when smoke or temperature exceeding 57°C (135°F) are detected. At the same time, it transmits a coded signal to the compatible PowerG control panel to activate the system siren, alerting the end user and/or GeoArm central monitoring station to send onsite assistance.
With a quick installation process and just a few holes to drill, the PowerG wireless smoke and heat detector offers home and business owners more choice in terms of installation, including locations in which wiring is difficult or impossible. Maintenance is also made easy, with audio and visual sensitivity degradation indicators notifying when cleaning or replacement of the detector is required.
Product Features:
- Photoelectric smoke detector
- Provides accurate early fire warning, with audio and visual alerts, when smoke or high temperature is detected
- Enhances safety and facilitates maintenance, with alerts for device tampering and low battery
- Ensures performance using built-in PowerG leading-edge wireless intrusion technology with two-way communication
- Offers long-lasting value with a 3-year battery life (with typical use)
- Large transmission range enables repeater-free installations
- Speeds up installations with visible link quality indicator on the device
- Simple wall or ceiling installation, with bracket
- Protected by a back tamper
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PG9936 Product Specifications:
- Dimensions: 5" x 2.5" in (125mm x 63mm)
- Weight (including battery): 243g (8.75 oz)
- Color: White
- Communication Protocol: PowerG
- Spacing Rating: 70 ft (21.3 m)
- Alarm Sensitivity (threshold) PG9936 (cULus): 1.26 to 2.39%/foot obscuration
- Alarm Sensitivity (threshold) PG4936/PG8936: complies with EN14604
- Audible Signal (ANSI Temporal 3): 85 dBA minimum in alarm
- Operating Temperature (PG9936): 40°F to 100°F (4.4°C to 37.8°C)
- Operating Temperature with Heat Detector: 32°F to 100°F (0°C to 37.8°C)
- Operating Temperature with Smoke Alarm (PG4936): 41°F to 113°F (5°C to 45°C); Type A Photoelectric Smoke Alarm (Australia)
- Operating Environment: Indoors
- Heat Alarm: 135°F (57°C)
- Humidity: 15 to 90% RH non condensing
- Approved Batteries: 3 AAA Energizer E92 or Duracell Procell PC2400
- Alarm Silencing: PG4936 8 minutes automatically resettable
- Supervisory Transmission Frequency: PG9936 64 minute intervals
- Supervisory Transmission Frequency: PG4936/PG8936 12 minute intervals
- Maximum Tx Power: 433.22 MHz - 434.64 MHz: 10 mW, 868.0 MHz - 868.6 MHz: 14 mW, 868.7 MHz - 869.2 MHz: 14 mW.
- Low Battery Detection: Low battery 14 days remaining
- Compatible Receivers: HSM2HOST9, HS2LCDRF(P)9, HS2ICNRF(P)9, PG9920, WS900-19, WS900-29 (912 MHz to 919 MHz)
- Approvals: FCC/IC, UL/ULC, CNC, CSFM, CE
DSC PG9936 Product Documents:
• DSC PG9936 Wireless PowerG Smoke and Heat Detector - Datasheet
• DSC PG9936 Wireless PowerG Smoke and Heat Detector - Installation and Operation Guide
DSC PG9936 LED Indicators:
Visual Status Indications:
- Normal: LEDs - Green flash every 60 seconds; Sounder - Off
- Heat Alarm: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
- Heat Test: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
- Smoke Alarm: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3 (press button to hush for 5-10 minutes)
- Smoke Test (with canned smoke): LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3 (press button to hush for 5-10 minutes)
- Test Alarm (button press): LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
- Detector Trouble: LEDs - Yellow flash every 4 seconds; Sounder - One chirp every 48 seconds
- Low Battery: LEDs - Yellow flash every 12 seconds; Sounder - One chirp every 48 seconds (press button to hush for 12 hours)
- Detector Dirty: LEDs - Yellow flash every 8 seconds; Sounder - One chirp every 48 seconds
- Power-up: Red, yellow, green, flash sequence; Sounder - One chirp at the end of the power-up sequence
- Tamper: Red, yellow, green flash sequence every 12 seconds; Sounder - off
- Hush Mode: LEDs - Red flash every 1 second (alarm hush), Yellow flash every 12 seconds (low battery hush)
DSC PG9936 Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
