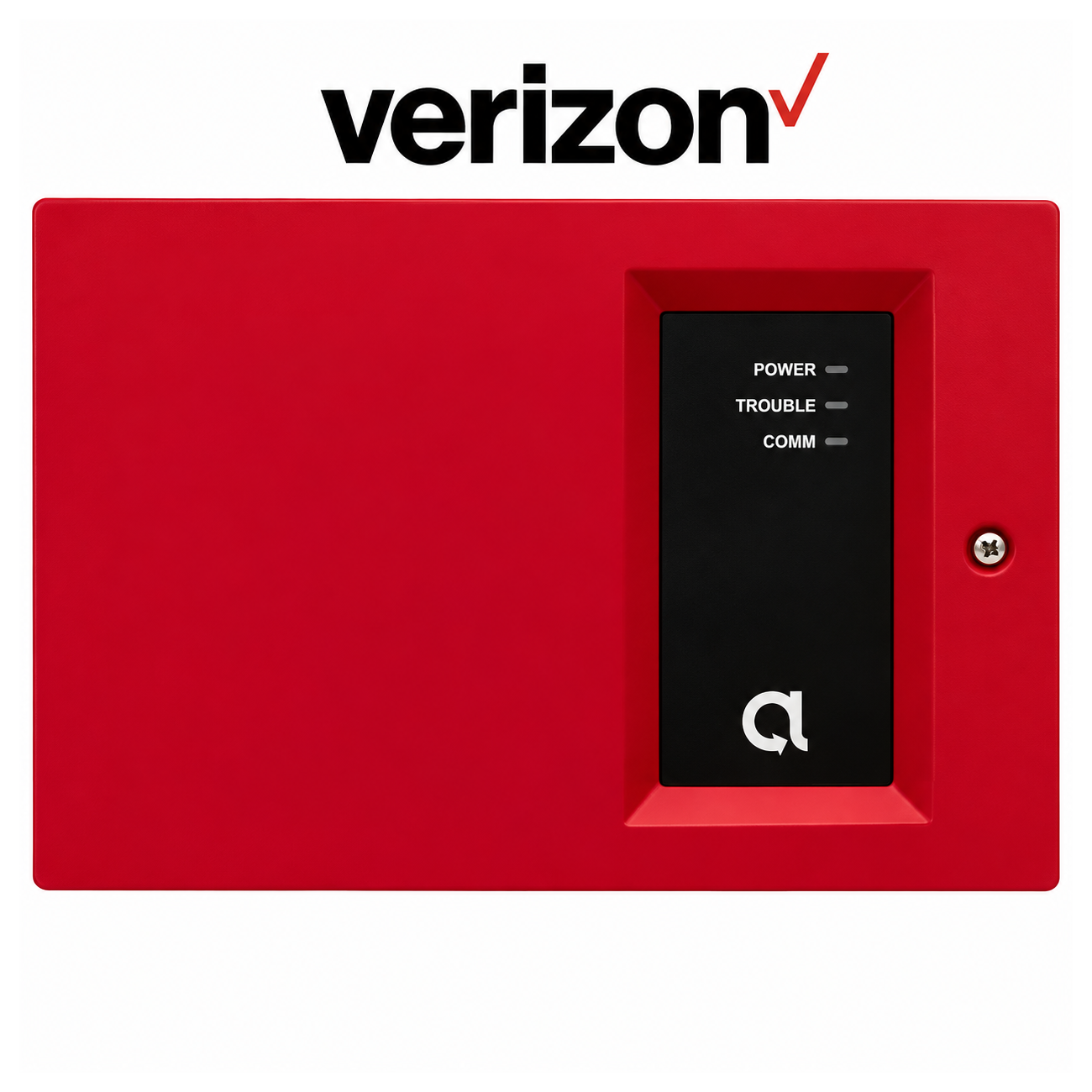

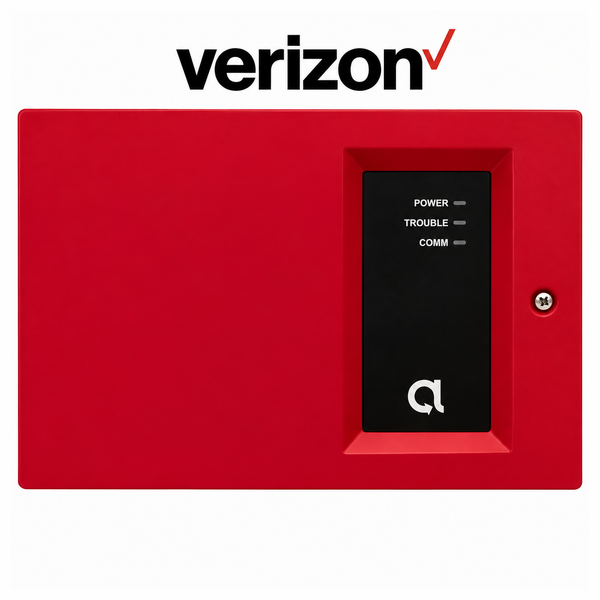

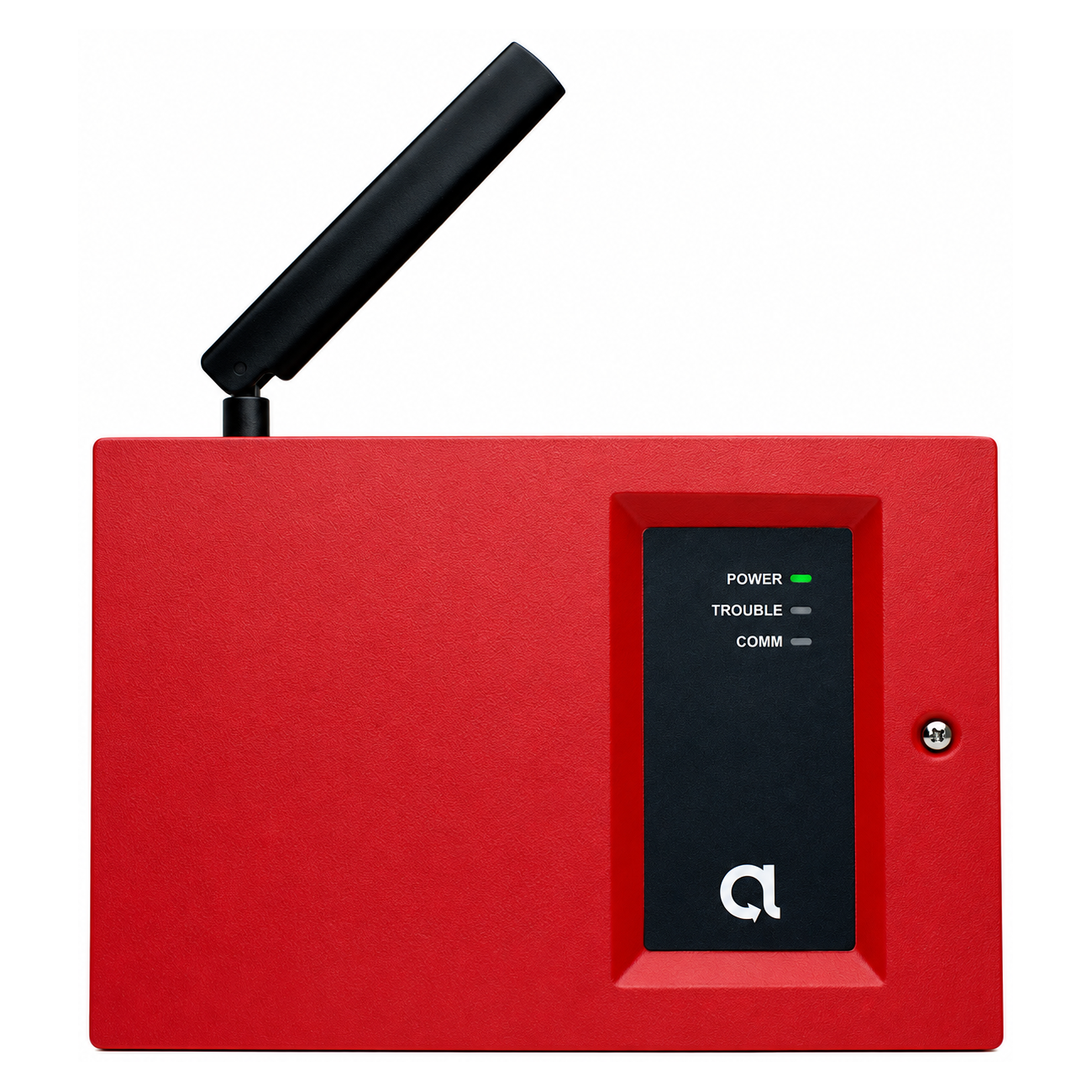

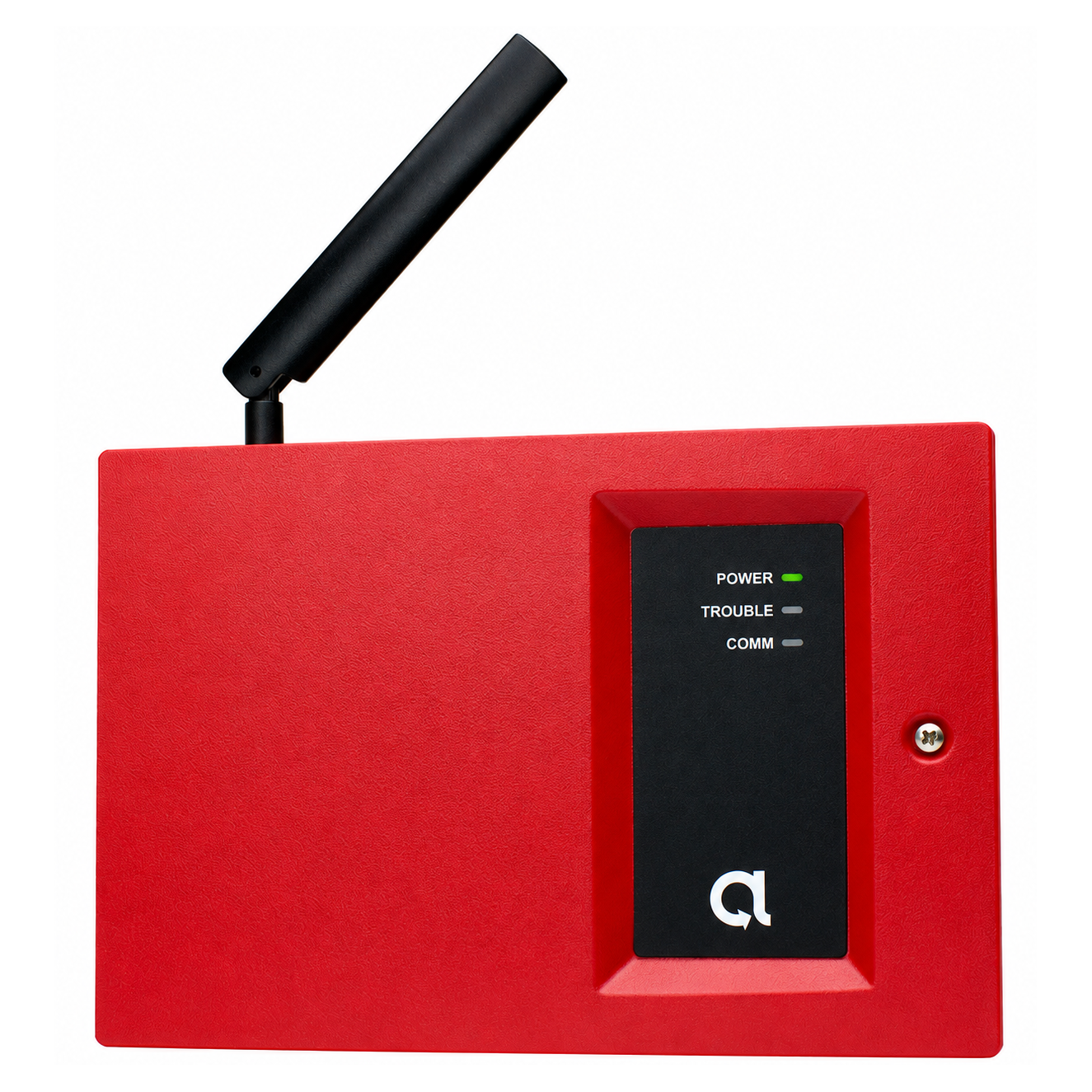

BAT-FIRE-VZ - Alula Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator (for Universal Contact ID Control Panels)
Alula BAT-FIRE-VZ Product Description:
The Alula BAT-FIRE-VZ is a universal dual-path internet/cellular Verizon 5G LTE-M commercial fire alarm communicator. The BAT-FIRE-VZ communicator connects to an intrusion or fire alarm control panel (FACP) and provides AlarmClub central station alarm reporting.
The BAT-FIRE-VZ can be configured to provide dual-path connectivity using Ethernet/broadband and cell or single-path connectivity using either Ethernet/broadband or cell to Bosch Conettix D6100IPv6 receivers at the central station. The BAT-FIRE-VZ allows system integrators to save money, maximize install flexibility and skip the 4G cellular sunset.
It provides two PSTN interfaces for the FACP/burg panel's DACT phone line connections. The BAT-Fire's DACT phone interface connection provides phone line voltage, dial tone, ringback tone and all required CID protocol signaling. The BAT-FIRE-VZ receives CID events from the FACP/burg panel's DACT and then relays the CID events to the central station receiver.
The BAT-FIRE-VZ provides inputs that can be used to monitor an FACP's alarm, AC fail, and trouble points (dry contact outputs). In this topology BAT-Fire inputs will be connected to the FACP points (dry contact outputs). The communicator will continually monitor the state of the FACP points (dry contact outputs). A state change on a BAT-FIRE-VZ monitored FACP point (dry contact output) will be reported to the central station.
Please Note: for UL 864 10th edition, this configuration may only be used for panels with one input zone. 9th edition and earlier permitted this method for multiple protection zones.
Product Features:
- Supports 12V and 24V regulated FACPs/burg panels
- Alarm capture via phone line interface or standard FACP/burg panel points
- Supports Contact ID (CID) reporting format
- Dual-Path: Ethernet (primary) with Cellular 5G LTE-M (backup)
- Sole-Path: Ethernet or Cellular 5G LTE-M
- Platform visibility through AlulaConnect™
- Trouble event detection and reporting
- Four programmable input/output ports
- At-a-glance system status via front-panel LEDs
- UL 864 10th edition commercial fire certification
- ULC-S559 commercial fire certification
- UL 1610 commercial burg certification
- ULC-S304 commercial burg certification (Security Level II installations)
- Remote programming, troubleshooting and managed over-the-air firmware upgrades
- 5-year warranty
*Please Note: The part listed above requires a subscription to Alula powered by AlarmClub.
Alula BAT-FIRE-VZ Product Specifications:
- Housing Dimensions (H x W x D): 8.6" x 5.8" x 2.2" inches (21.8 x 14.6 x 5.5 cm)
- Weight: 13.2 oz (372.9 g)
- Cover Securing Screw: #6 screw (included)
- Mounting Fasteners: #6 screws and wall anchors (included)
- Pilot Hole for Screw into Wood: 1/8 in (3 mm)
- Pilot Hole for Wall Anchor: 3/16 in (4.7 mm)
- Antenna: External (Included)
- Wire Gauge Range: 24-14 AWG
- Operating Temperature: 32°F to 120°F (0°C to 48.9°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Reported Indications: Cover Tamper
- Current Draw: 154mA (Standby) 207mA (Max) @ 12VDC
109mA (Standby) 161mA (Max) @ 24VDC - Input Voltage: 10V-27VDC
- Programmable Ouput Current Maximum: Will shunt up to 75 mA into ground
- Central Station Receivers: Bosch Conettix: D6600 Plus, ITS-D6686-UL, D6100PV6
- Cellular Network: Verizon 5G LTE-M
- Certification Listings: FCC, IC, Verizon, UL 864 10th edition, ULC-S559, UL 1610, ULC-S304
Alula BAT-FIRE-VZ Product Compatibility:
• Universal FACP (with Contact ID, dialer-capture, and dialer-less)
Alula BAT-FIRE-VZ Product Documents:
• Data Sheet for Alula BAT-FIRE-VZ Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator
• Configuration Guide for Alula BAT-FIRE-VZ Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator
• Installation Guide for Alula BAT-FIRE-VZ Commercial Fire Dual-Path IP/Cellular Verizon 5G LTE-M Alarm Communicator
Alula CONNECT-XT-V-Z Product LED Indicators:
Indications:
- Power: Pulses when power is present
- Trouble: Green - system ok
Yellow - input voltage < 8V, or
-cell connection has failed, or
-Ethernet connection has failed, or
cover is open - Comm: Green - central station receiver(s) all ok
Yellow - central station receiver(s) trouble
Off - all central station receiver(s) have failed - Ethernet: Off - interface not used
Flashing - attempting connection using this interface
On - connected using this interface - Wi-Fi: Unused
- Cellular: Off - cell is not registered
Flashing - last connection test failed
On - connected using this interface
Short blink - connected via Ethernet, last cell connection test successful - Update: Off - firmware update available
Flashing - firmware update is in progress
On - firmware is up to date - Device: Unused
Cellular Signal Strength:
- 0 LED's Lit: Bad
- 1 LED's Lit: Marginal
- 2 LED's Lit: Acceptable
- 3 LED's Lit: Good
- 4 LED's Lit: Best
Report Codes:
- Peripheral Tamper (Cover Tamper): 341 Report Code, 0 Device - Zone/User
- Peripheral Tamper (Cover Tamper): 341 Report Code (0 Device - Zone/User)
- Comm Test Trouble: 350 Report Code (800-803 Device - Zone/User)
- Manual Comm Test: 601 Report Code (800-803 Device - Zone/User)
- Optionally generated point capture event: Programmable (Programmable Zone Number)
