2GIG-SMKT-900 - 2GIG Wireless E+ Extended Range Encrypted Smoke, Heat and Freeze Detector
Please Note: The 2GIG-SMKT-900 wireless E+ extended range combo smoke, heat, and freeze detector is a pre-order item.
2GIG-SMKT-900 Product Description:

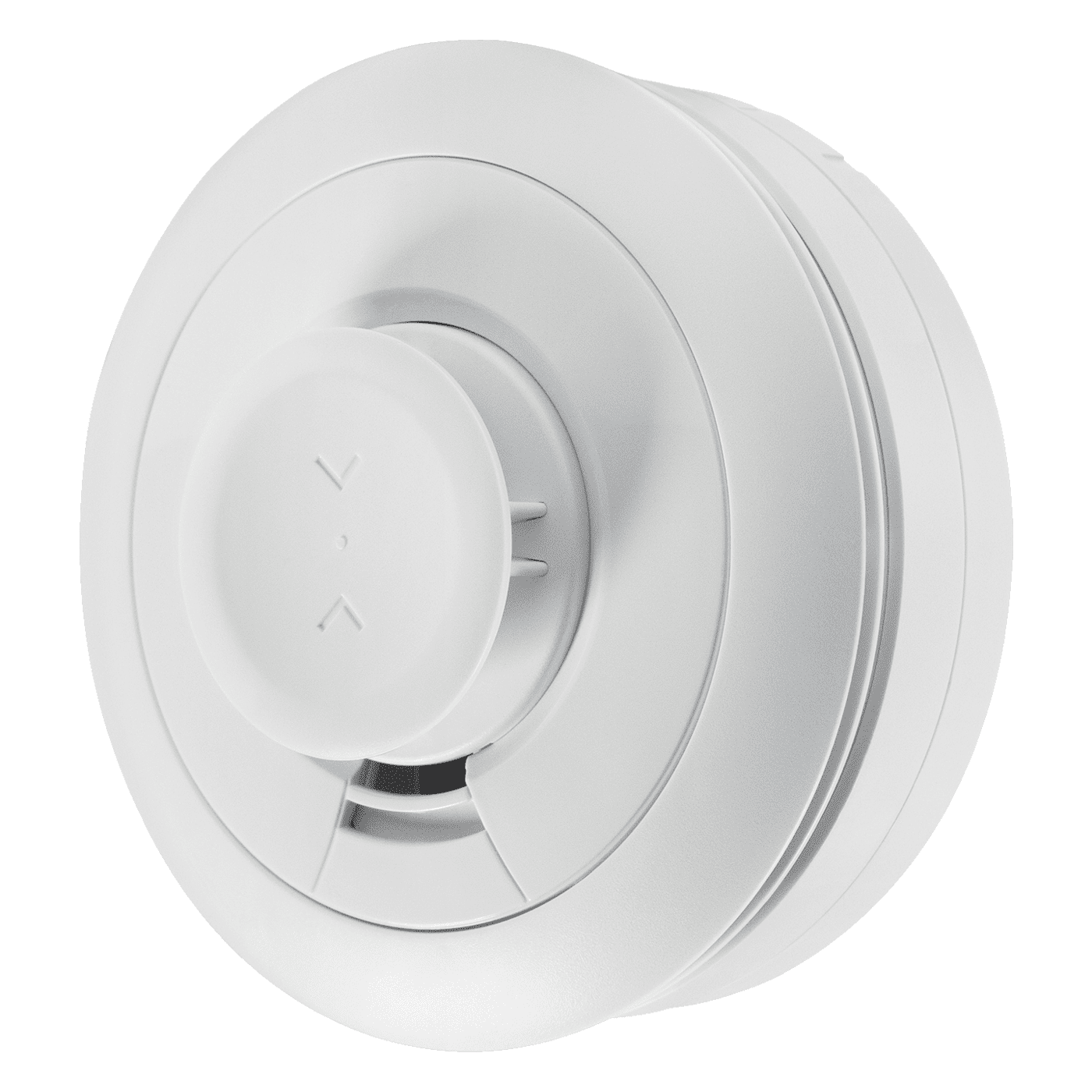

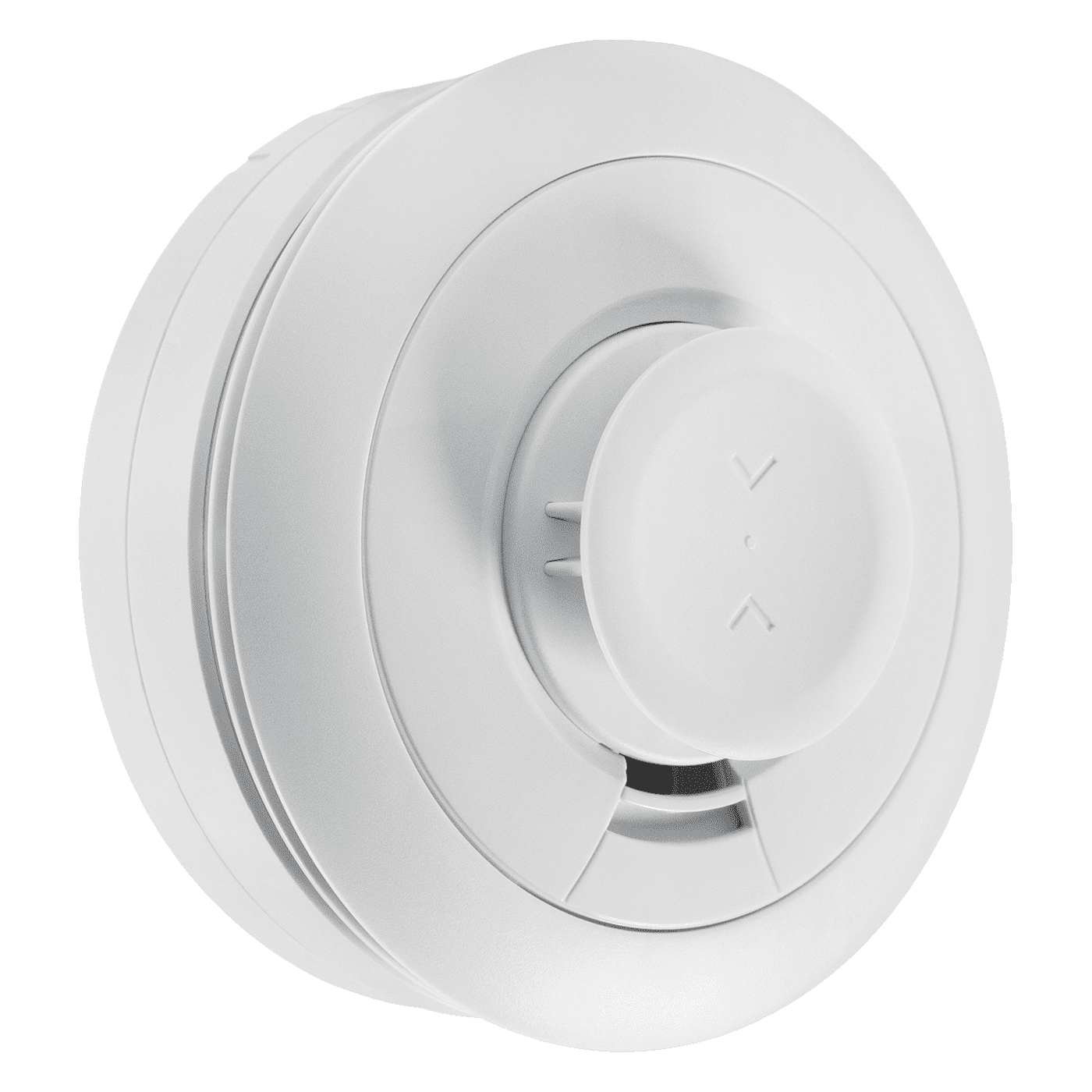

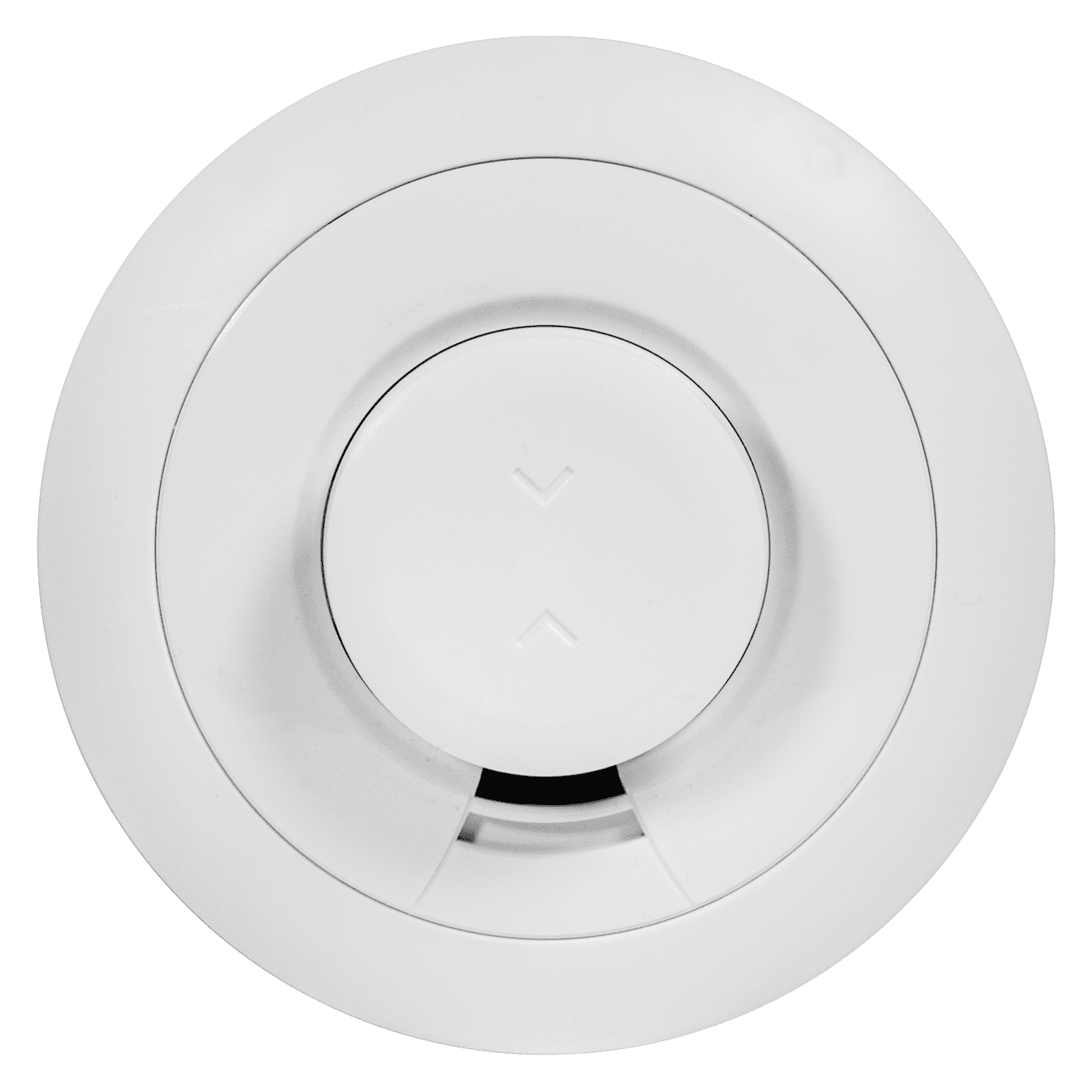

The 2GIG-SMKT-900 is a wireless, E+ extended range series, combo smoke, heat and freeze detector intended for use with 2GIG EDGE control panel. The 2GIG SMKT-900 is powered by 2 x CR123A batteries, with a 3 year projected battery life, which eliminate the need to run power to the device. When smoke, excessive heat or cold is detected, the alarm sounds a loud local alarm and the built-in transmitter sends an alarm signal.
This 2GIG SMKT-900 smoke/heat/freeze detector provides encrypted protection within an extended range of 2KM* (1.2 miles) open air from the control panel. Additionally, the detector also sends alarm, tamper and battery condition messages to the control panel.
The detector recognizes smoke from common synthetic materials and decrease nuisance alarms from everyday cooking. Using advanced detection algorithms and a sophisticated photo-electric optical sensor, this detector meets the new UL standards for the year 2020. The 2GIG-SMKT-900 detector has been designed to detect fire issues earlier, providing a more accurate and timely notice in the event of smoke or fire.
In addition, the SMKT-900 sensor helps monitor and report on excessive temperature and temperature variations. A high-temperature alert is sent to the panel and the siren is triggered when the ambient temperature exceeds 134°F. A Rate-of-Rise temperature alert is sent to the panel and siren is triggered when the ambient temperature is at 104°F and rises 15°F or more in one minute, and a freeze warning is sent to the panel if the ambient temperature is below 40°F for more than one minute.
The new UL 217 & 268 smoke alarm standards bring 250 technological changes to traditional smoke detection. Meeting the new UL standards, the provides increased performance and better detection of smoke, including smoke from common synthetic materials found in home furnishings. These synthetic materials generally have a faster burn rate reducing escape time from an average of 17 minutes to 3-4 minutes (UL Press Release - February 2018).
Traditional smoke detectors trigger an alarm when any smoke density reached a specific level, which could have just been normal cooking events. The 2GIG-SMKT-900 smoke/heat/freeze detector uses advanced algorithms and a sophisticated optical chamber to improve the detection of smoke particles created by some synthetic materials, separate from organic smoke associated with normal cooking events. The new technology is designed to trigger an alarm faster when synthetic smoke is detected versus smoke from cooking, adding to safety and peace of mind.
Product Features:
- Smoke, heat and freeze detection (Compatible with 2GIG EDGE Panels)
- Extended Range of up to 1.2 miles* with 900MHz spectrum
- Supports UL268 7th edition requirements
- One Go/All Go communication enables all E+ smoke detectors to collectively sound an alarm, ensuring swift response and maximizing urgency
- Monitors and reports excessive temperature variances including rate of rise, which is triggered once room temperature is 104°F
- Optical smoke detection chamber for improved smoke detection and recognition of smoke from some synthetic materials
- Battery life of up to 3 years
- Two-way encrypted communication for enhanced security and reliability
- E+ extended range series wireless encryption
*Wireless range can vary depending on building materials
2GIG-SMKT-900 Product Specifications:
- Wireless Signal Range: 2KM (1.2 miles), open air with EDGE wireless control panel
- Transmitter Frequency: 904MHz - 922MHz
- Supervisory Interval: 70 minutes
- Dimensions (D x H): 4.7 x 1.8 inch (120 x 46 mm)
- Weight: 0.46 lbs
- Color: White
- Audible Alarm: > 85dB (A) at 10ft (3m) minimum
- High Temperature Level: 134°F ± 4°F
- High Temperature Rate of Rise: Temperature above 104°F and increases 15°F or more in one minute
- Low Temperature Level: 40°F ± 4°F. Reset at 45°F ± 4°F
- Operating Temperature Limits: -40° to 100°F (4.4° to 37.8°C)
- Operating Relative Humidity: 15-95% Non-Condensing
- Battery: 2 x CR123A
- Regulatory Listing: UL268 7th Edition, CAN/ULC S529 7th Edition, CSFM
- Warranty: 2 years
- Projected Battery Life: 10 years
2GIG-SMKT-900 Product Includes:
- (1) Wireless Smoke/Heat/Freeze Detector
- (1) Pack of screws and fixings
- (2) CR123A batteries
